Power Tools and Cutting Machines -TM EQUIPMENTS

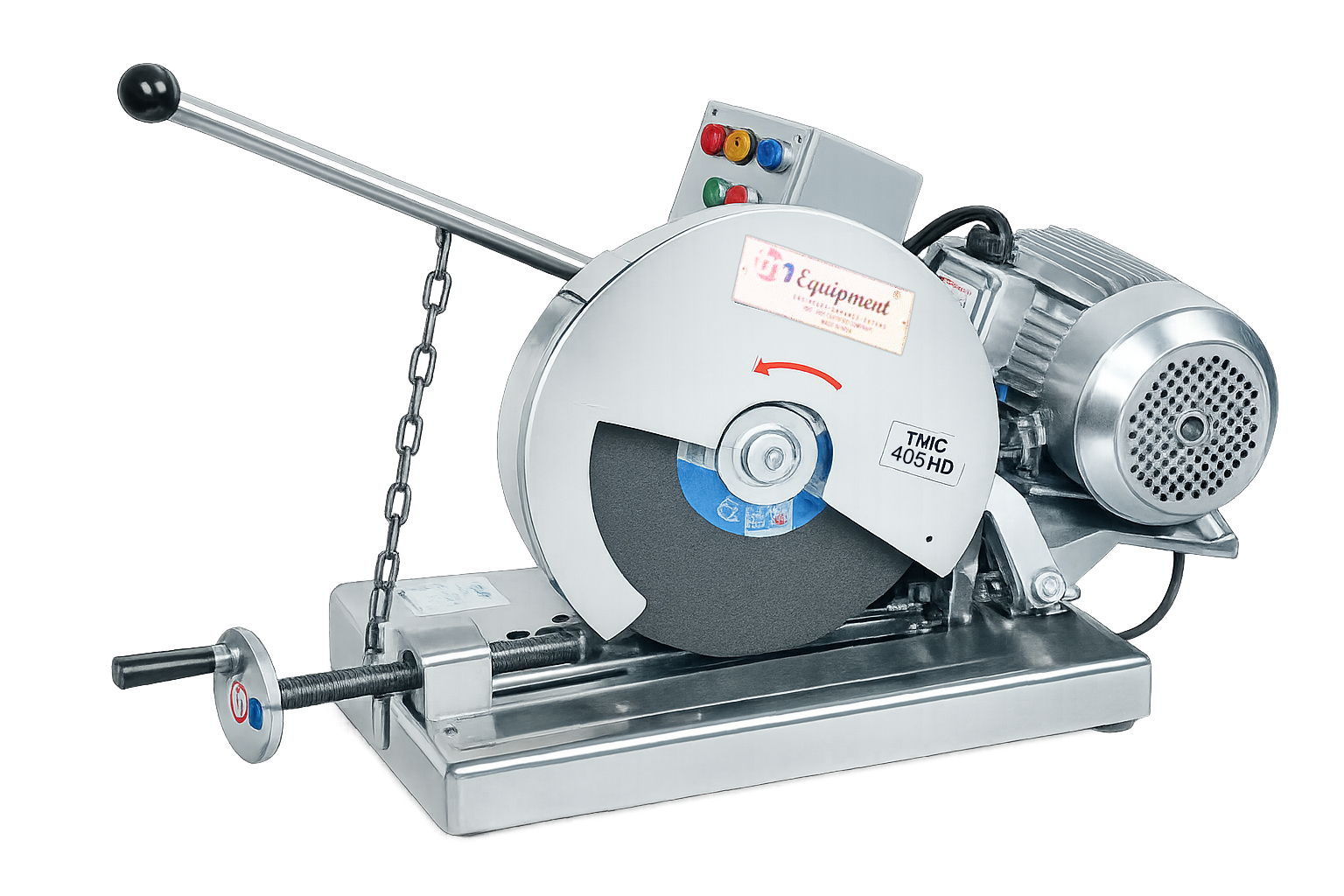

TMC 405 Series ( HD / BTS / SS )
TMC 405 HD - BTS
- L-775xW-600xH-850mm
- Weight: 165kgs.

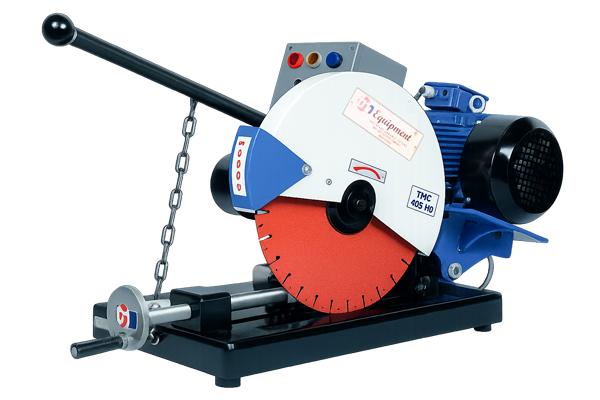

TMC 405 HD
- L-665xW-400xH-81mm
- Weight: 105kgs.
TMC 405 HD - SS
- L-665xW-400xH-81mm
- Weight: 86kgs.
Technical Specifications
Material To Be Cut
S.S. & M.S.
Cut Off Wheel Suitable Max
400 MM Abrasive / Diamond Disc
No Load Speed
3500 RPM
Motor Details
5 HP, 3 PH, IP 55, 50-60 HZ
Display
Voltage / AMP
Noise Level (db)
95
Maximum Operating Vice
190 mm
Belt
Timing Belt

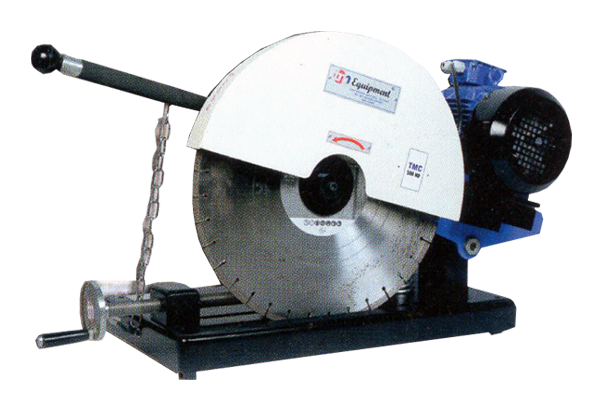

TMC 500 Series ( HD )
TMC 500 HD - Concrete Block & Metal Application
- L-1000 x W-400 x H-550mm
- Weight: 108kgs.
Technical Specifications
Material To Be Cut
Concrete Block & Metal
Cut Off Wheel Suitable Max
500 MM Abrasive / Diamond Disc
No Load Speed
3500 RPM
Motor Details
5 HP, 3 PH, IP 55, 50-60 HZ
Display
Digital Voltage / AMP
Noise Level (db)
95
Maximum Operating Vice
190 mm
Belt
Timing Belt

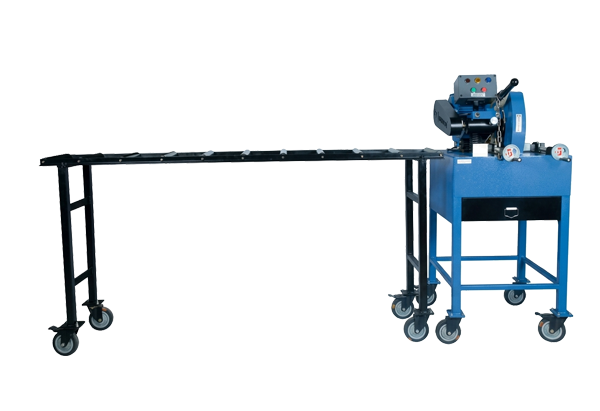

TMC 355 Series ( 3 BTS - 3 )
TMC 355 / 3 BTS
- L-620 x W-850 x H-850mm
- Weight: 121kgs.
TMC 355 / 3
- L-560 x W-365 x H-79mm
- Weight: 67kgs.
Technical Specifications
Material To Be Cut
S.S & M.S
Cut Off Wheel Suitable Max
355 MM Abrasive / Diamond Disc
No Load Speed
3500 RPM
Motor Details
5 HP, 3 PH, IP 55, 50-60 HZ
Display
Voltage / AMP
Noise Level (db)
95
Maximum Operating Vice
150 mm
Belt
Timing Belt

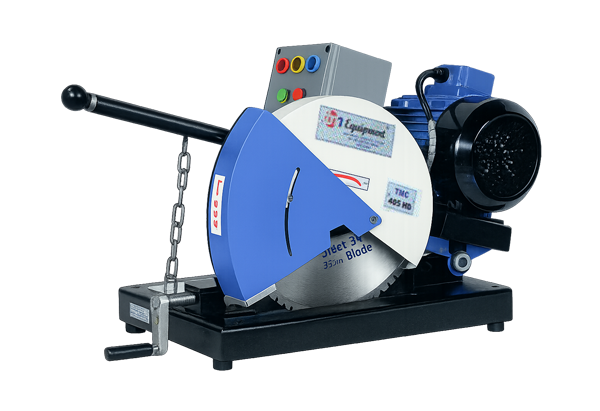

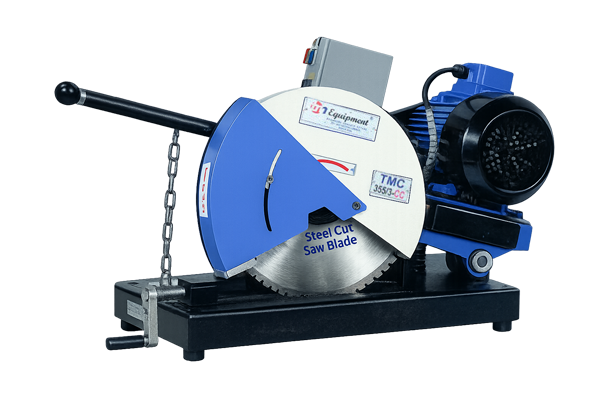

TMC 355 Series (3 BTS-CC/3-CC)
TMC 355 / 3 BTS - CC
- L-620 x W-580 x H-850mm
- Weight: 121kgs.
TMC 355 / 3 - CC
- L-560 x W-365 x H-79mm
- Weight: 67kgs.
Technical Specifications
Material To Be Cut
S.S. & M.S.
Pipe Dia
110 MM
Shaped Steel
100 MM
Cut Off Wheel
35mm TCT
No. Load Speed
1400 RPM
Max Operating Vice
190 MM
Belt
Timing Belt
Noise Level (dh)
95

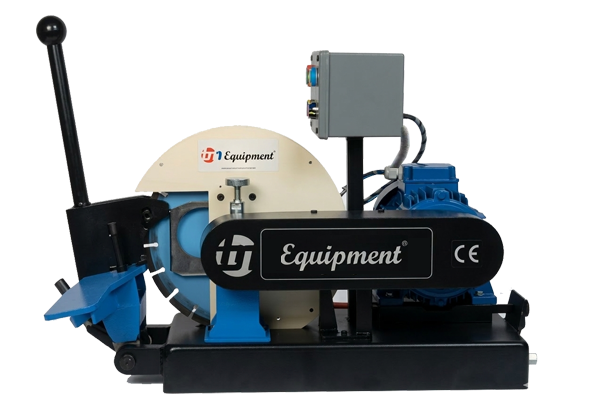

THC 300 Hydrotic Hose 65mm
THC 300
- Weight: 52kgs.
Technical Specifications
Material To Be Cut
Concrete / Aac Block
Cut Off Wheel Suitable Max
300 MM
No Load Speed
3000 RPM
Motor Details
3 HP, 3 PH, IP 55, 50-60 HZ
Noise Level (db)
95

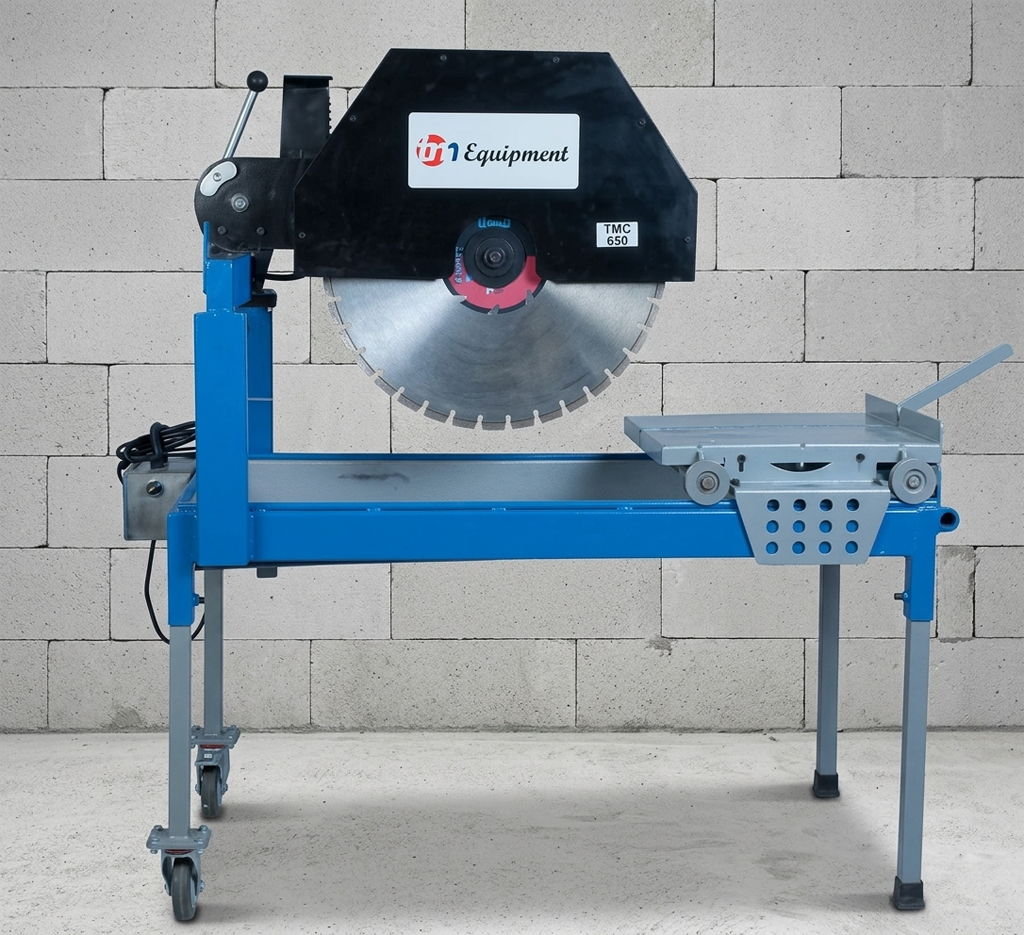

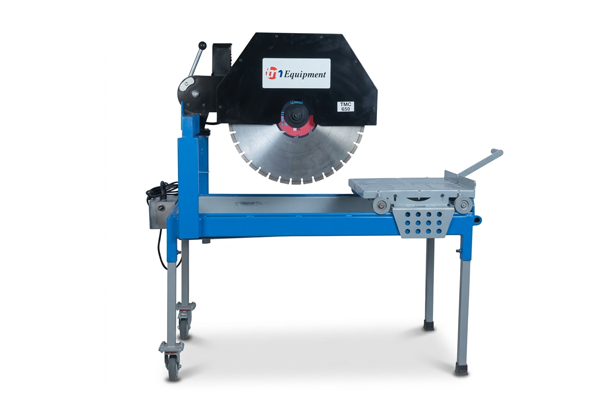

TBC 650 - Concrete Block Cutting Machine
TBC 650
- L-1355 x W-762 x H-1425mm
- Weight: 126kgs.
- Cutting Capacity: 225 x 300
Technical Specifications
Material To Be Cut
Concrete / Aac Block
Cut Off Wheel Suitable Max
650 MM Diamond Disc
No. Load Speed
1450 RPM
Motor Details
3 HP, 3 PH, IP 55, 50-60 HZ
Noise Level (dh)
95
Machine Movement
2 Wheels with Lock
Machine Height at the cutting bed
750 mm
Water Try Capacity
60 Liters

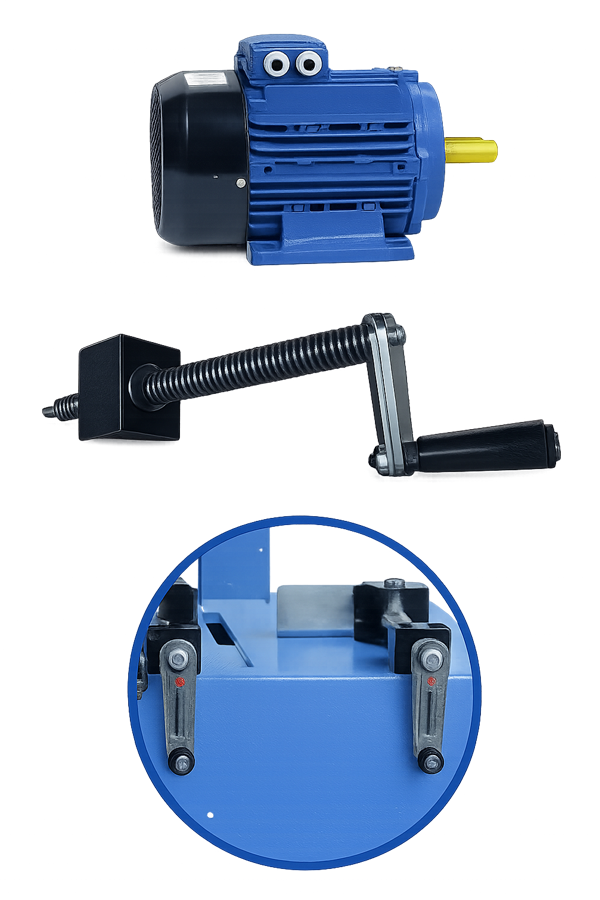

Features

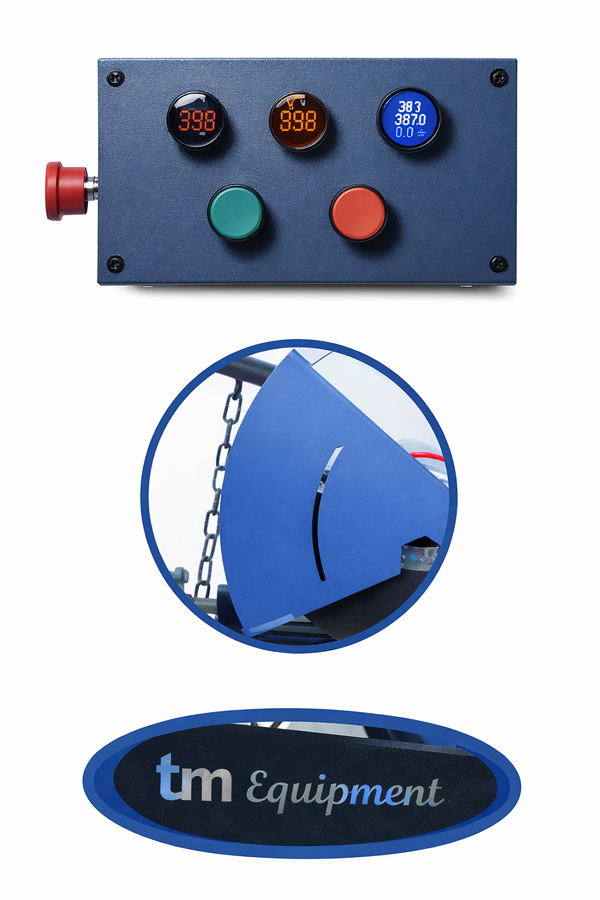

Electronic control box with digital display of voltage of each phase and amp. Extended disc guard and heavy duty belt guard for safety.
IP55 motor with copper winding. Lead screw with ergonomic handle for better usability. Double holding for precision cutting on bench top version
